- 500,000m/year production capacity
- ±0.01mm tolerance from CNC mandrel bending
- Corrosion-resistant, lightweight and weldable alloys
- Custom radius and bend angle on request
- Lead time under 1 week
Aluminium Specifications
| Spec | OD (mm) | TH (mm) | Radius (mm) |
|---|---|---|---|
| 40×3.0×50×90° | ø40 | 3.0 | 50 |
| 40×3.0×75×90°/180° | ø40 | 3.0 | 75 |
| 40×3.0×100×90°/180° | ø40 | 3.0 | 100 |
| 50×3.0×100×90°/180° | ø50 | 3.0 | 100 |
| 50×3.0×65×90° | ø50 | 3.0 | 65 |
Don’t see your dimensions? We offer made-to-order bending for special lengths and radii.
- High-precision mandrel bending technology
- Superior surface finish and consistency
- Wide range of steel grades available
- Custom radius and angle specifications
Steel Specifications
| Spec | OD (mm) | TH (mm) | Radius (mm) |
|---|---|---|---|
| 19×1.2×49×180° | ø19 | 1.2 | 49 |
| 19×1.2×50×180° | ø19 | 1.2 | 50 |
| 25×1.6×62.5×180° | ø25 | 1.6 | 62.5 |
| 25×1.6×70×180° | ø25 | 1.6 | 70 |
| 32NB×3.2×100×180° | ø42.4 | 3.2 | 100 |
| 40NB×2.9×100×180° | ø48.3 | 2.9 | 100 |
Stainless Steel Specifications
| Spec | OD (mm) | TH (mm) | Radius (mm) |
|---|---|---|---|
| 50.8×1.6×100×90°/180° | ø50.8 | 1.6 | 100 |
Stock and Custom Cutting

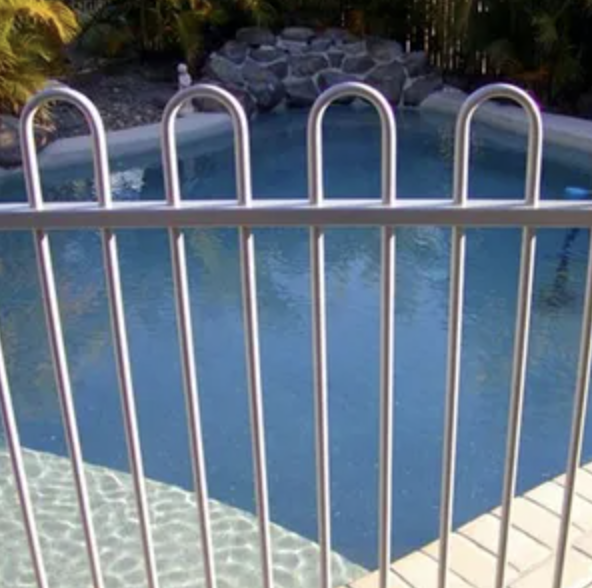

We stock aluminium and pre-galvanised steel tubes for fencing, gates, and structural projects. Our cut-to-length service ensures rapid turnaround and competitive pricing for projects of all sizes.
Industries We Serve
- Automotive
- Construction
- Safety Barriers
- Agricultural Equipment
- Mining Infrastructure
- Defense & Rail

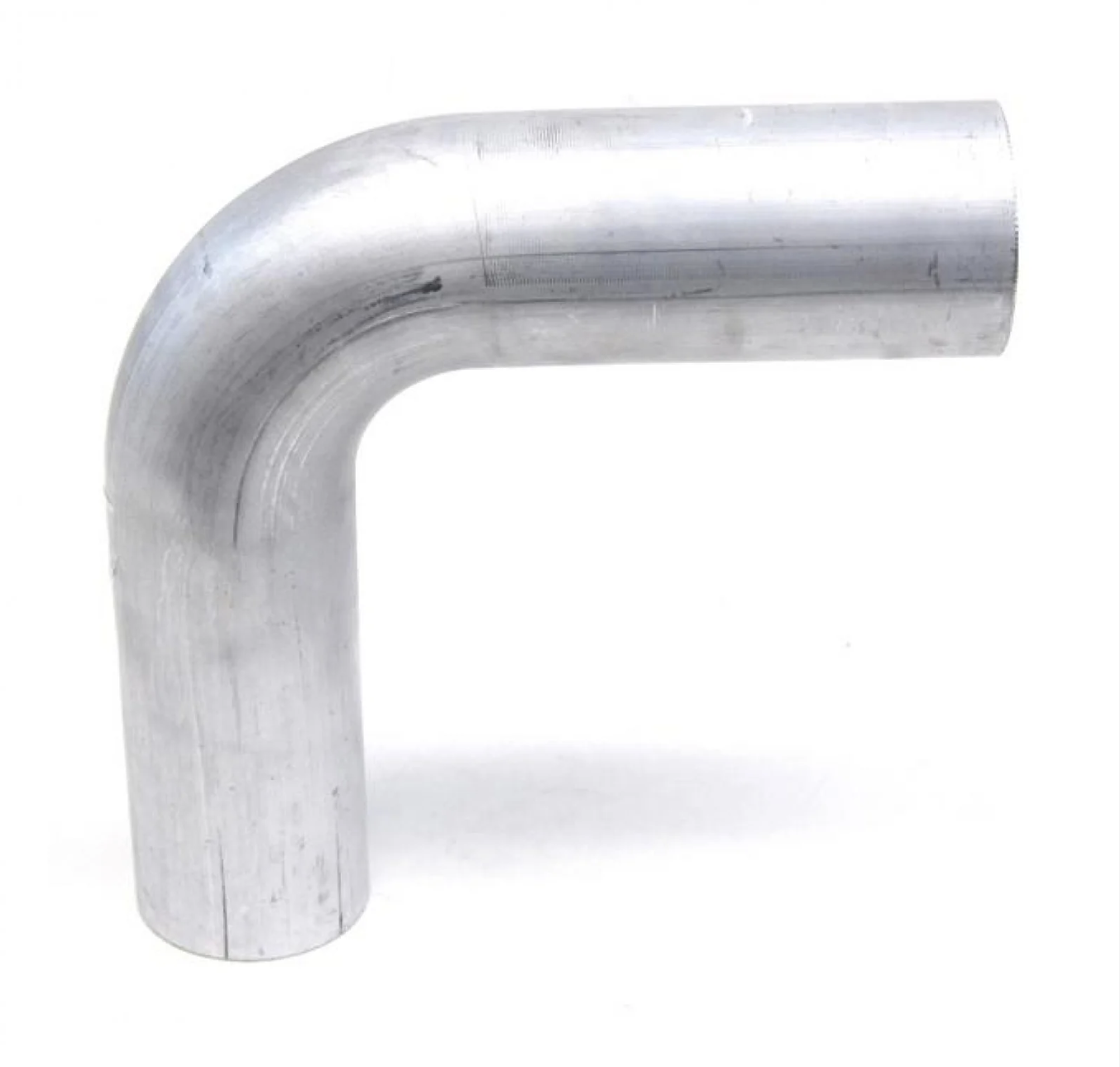

Mandrel Bend Gallery
Need mandrel bending support? We're ready.
